产品描述
Product Description
SIZE:80x80x25mm
CONSTRUCTION:Die-cast aluminum housingGlass fiber reinforced plastic:Impeller is UL 94V-0 rating Shaded pole motorThermal protected or Impedance protectedLead wire or terminal is available
OPERATING TEMPERATURE:Ball bearing -10℃to +70℃;Sleeve bearing -10℃ to +60℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:1mA max, at 2000 VAC 1minute(between frame and terminal)
尺寸图
Dimensions Drawing
特征曲线
Characteristic Curves
规格参数
Specifications

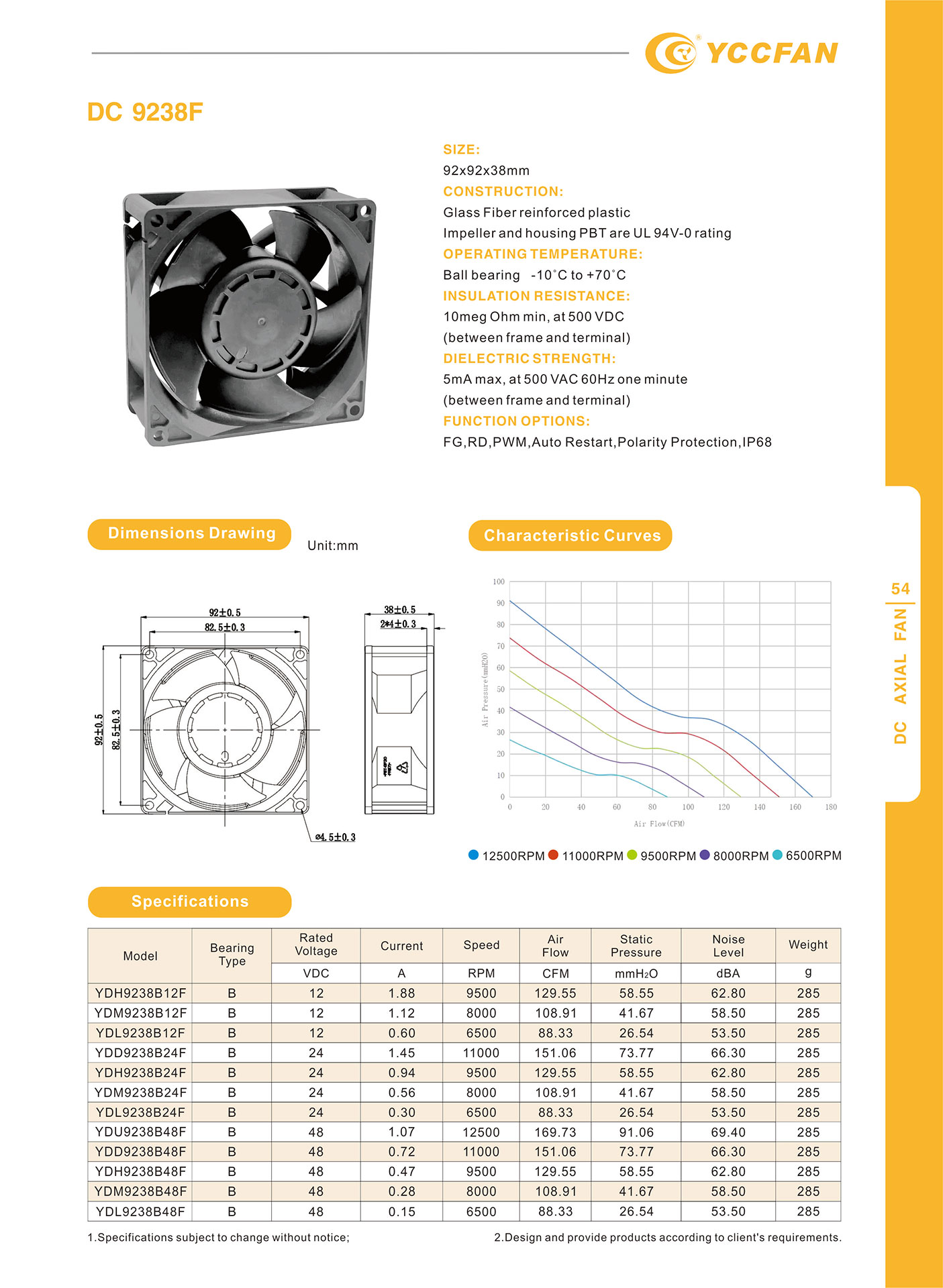

| SIZE (mm) | MODEL | Bearing(X) | Voltage | Testing Current | SPEED (RPM) | AIR FLOW (CFM) | PRESSURE (mmAq) | NOISE (dBA) | W (g) |
| 9238F | YDH9238B12F | B | 12 | 1.88 | 9500 | 129.55 | 58.55 | 62.8 | 285 |
| YDM9238B12F | 1.12 | 8000 | 108.91 | 41.67 | 58.5 | 285 | |||
| YDL9238B12F | 0.60 | 6500 | 88.33 | 26.54 | 53.5 | 285 | |||
| YDD9238B24F | 24 | 1.45 | 11000 | 151.06 | 73.77 | 66.3 | 285 | ||
| YDH9238B24F | 0.94 | 9500 | 129.55 | 58.55 | 62.8 | 285 | |||
| YDM9238B24F | 0.56 | 8000 | 108.91 | 41.67 | 58.5 | 285 | |||
| YDL9238B24F | 0.30 | 6500 | 88.33 | 26.54 | 53.5 | 285 | |||
| YDU9238B48F | 48 | 1.07 | 12500 | 169.73 | 91.06 | 69.4 | 285 | ||
| YDD9238B48F | 0.72 | 11000 | 151.06 | 73.77 | 66.3 | 285 | |||
| YDH9238B48F | 0.47 | 9500 | 129.55 | 58.55 | 62.8 | 285 | |||
| YDM9238B48F | 0.28 | 8000 | 108.91 | 41.67 | 58.5 | 285 | |||
| YDL9238B48F | 0.15 | 6500 | 88.33 | 26.54 | 53.5 | 285 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
