产品描述

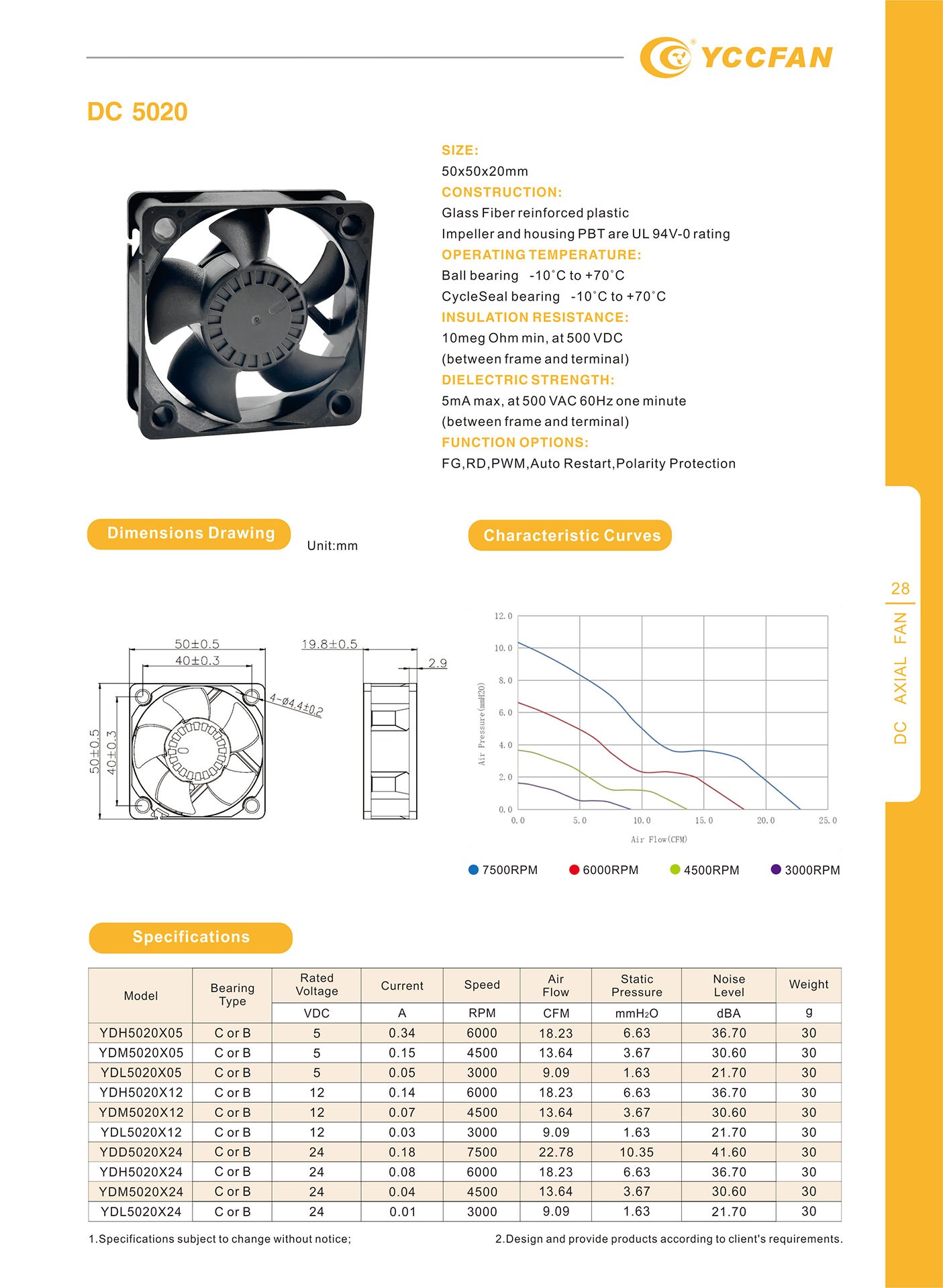

Product Description
SIZE:50x50x20mm
CONSTRUCTION:Glass Fiber reinforced plastic Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃;Sleeve bearing -10℃ to +60℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸图
Dimensions Drawing
特征曲线
Characteristic Curves
规格参数
Specifications
| SIZE (mm) | MODEL | Bearing(X) | Voltage | Testing Current | SPEED (RPM) | AIR FLOW (CFM) | PRESSURE (mmAq) | NOISE (dBA) | W (g) |
| 5020 | YDH5020X05 | C or B | 5 | 0.34 | 6000 | 18.23 | 6.63 | 36.70 | 30 |
| YDM5020X05 | 0.15 | 4500 | 13.64 | 3.67 | 30.60 | 30 | |||
| YDL5020X05 | 0.05 | 3000 | 9.09 | 1.63 | 21.70 | 30 | |||
| YDH5020X12 | 12 | 0.14 | 6000 | 18.23 | 6.63 | 36.70 | 30 | ||
| YDM5020X12 | 0.07 | 4500 | 13.64 | 3.67 | 30.60 | 30 | |||
| YDL5020X12 | 0.03 | 3000 | 9.09 | 1.63 | 21.70 | 30 | |||
| YDD5020X24 | 24 | 0.15 | 7500 | 22.78 | 10.35 | 41.60 | 30 | ||
| YDH5020X24 | 0.08 | 6000 | 18.23 | 6.63 | 36.70 | 30 | |||
| YDM5020X24 | 0.04 | 4500 | 13.64 | 3.67 | 30.60 | 30 | |||
| YDL5020X24 | 0.01 | 3000 | 9.09 | 1.63 | 21.70 | 30 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
