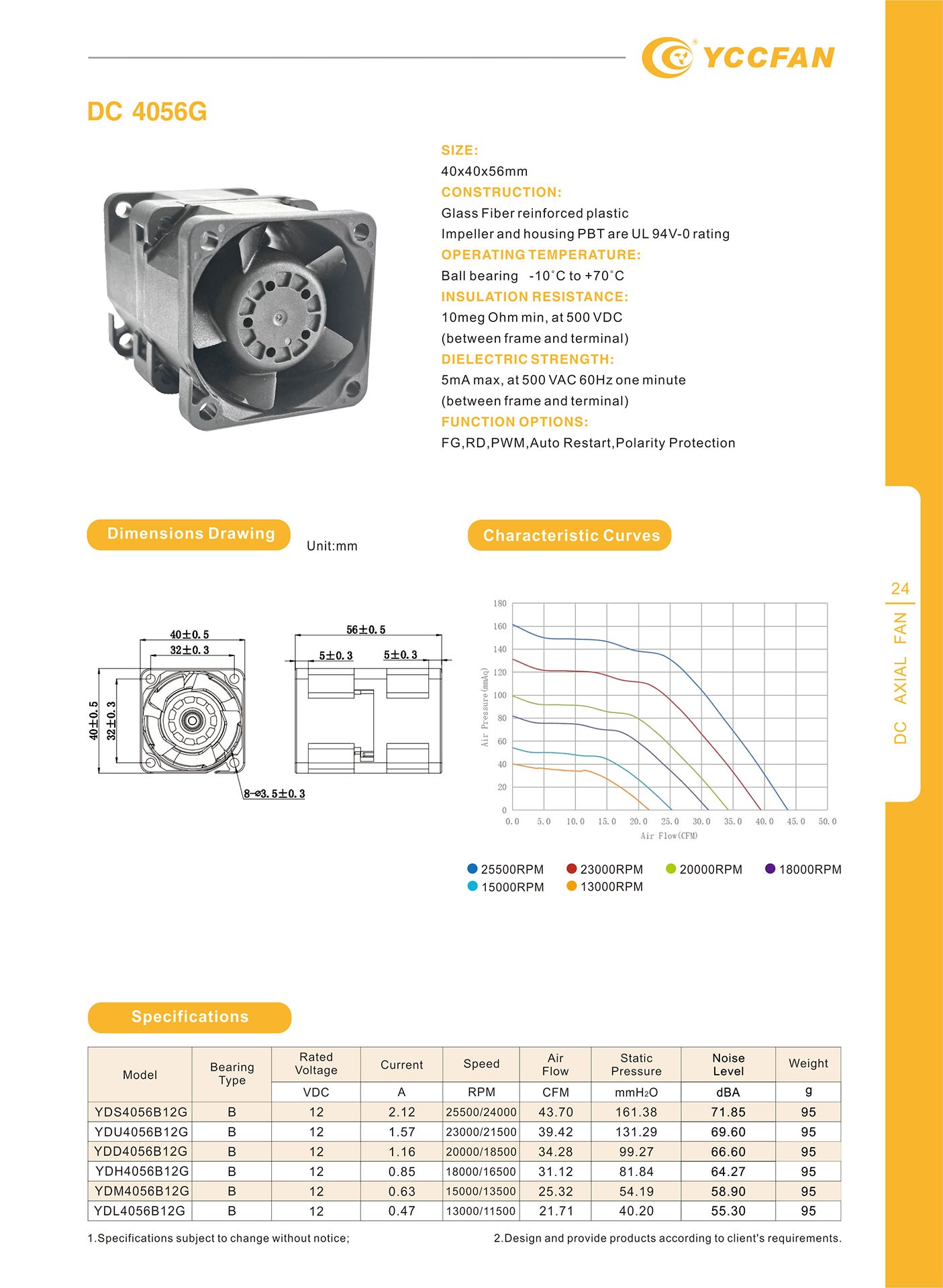

产品描述
Product Description
SIZE:40x40x56mm
CONSTRUCTION:Glass Fiber reinforced plastic Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸图
Dimensions Drawing
特征曲线
Characteristic Curves
规格参数
Specifications
| Model | Bearing Type | Rated Voltage | Current | Speed | Air Flow | Static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YDS4056X12G | B | 12 | 2.12 | 25500/24000 | 43.70 | 161.38 | 71.85 | 95 |
| YDU4056X12G | B | 12 | 1.57 | 23000/21500 | 39.42 | 131.29 | 69.60 | 95 |
| YDD4056X12G | B | 12 | 1.16 | 20000/18500 | 34.28 | 99.27 | 66.60 | 95 |
| YDH4056X12G | B | 12 | 0.85 | 18000/16500 | 31.12 | 81.84 | 64.27 | 95 |
| YDM4056X12G | B | 12 | 0.63 | 150O0/13500 | 25.32 | 54.19 | 58.90 | 95 |
| YDL4056X12G | B | 12 | 0.47 | 13000/11500 | 21.71 | 40.20 | 55.30 | 95 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
